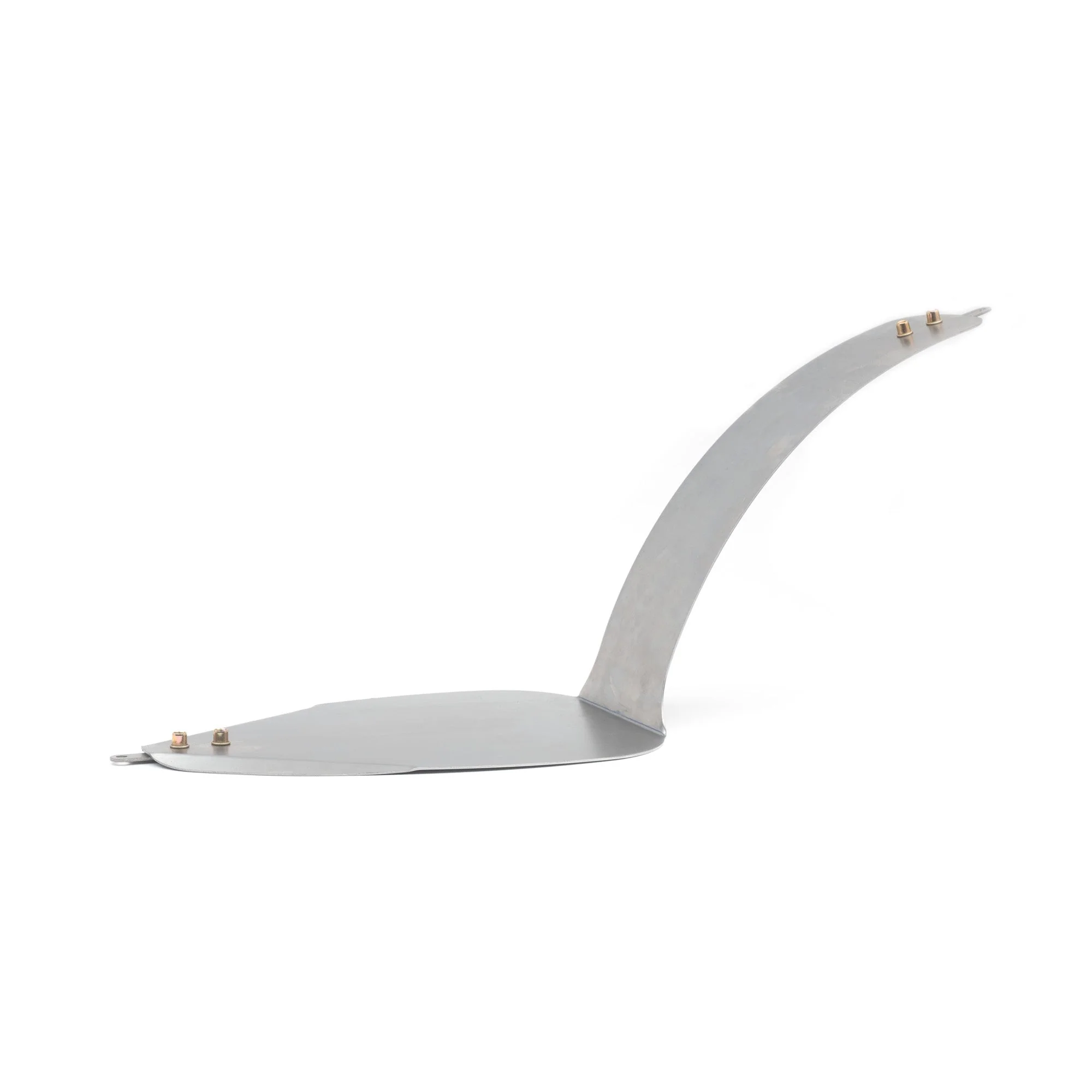

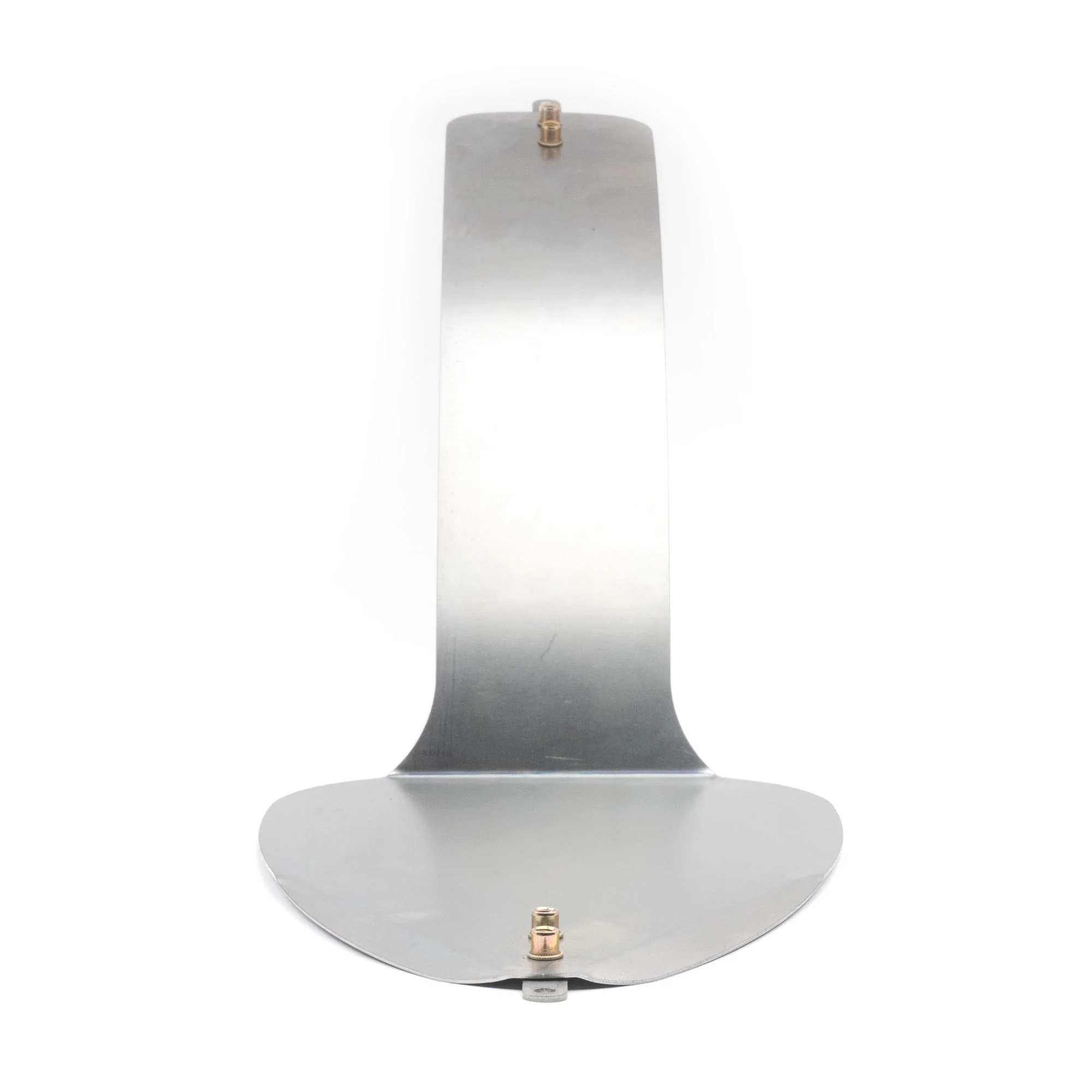

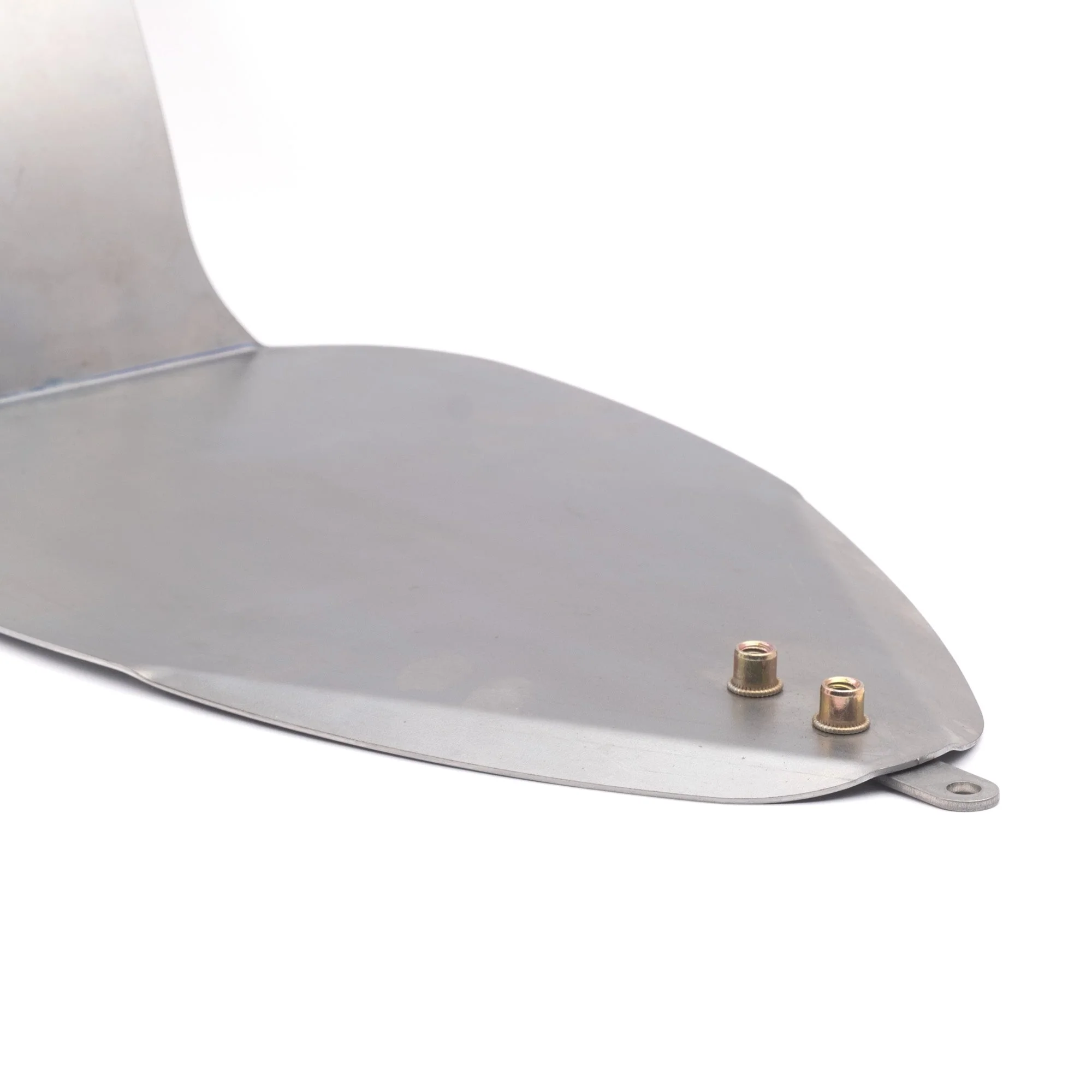

Chopper Seat Pan

We've been working on these seat pans for a while to find the most universal pan for the chopper frame. You can modify them or use as is. Please see below dimensions to make sure it will work for your application.

Seat Details:

• Made in USA
• Pan is made from 16 gauge mild steel

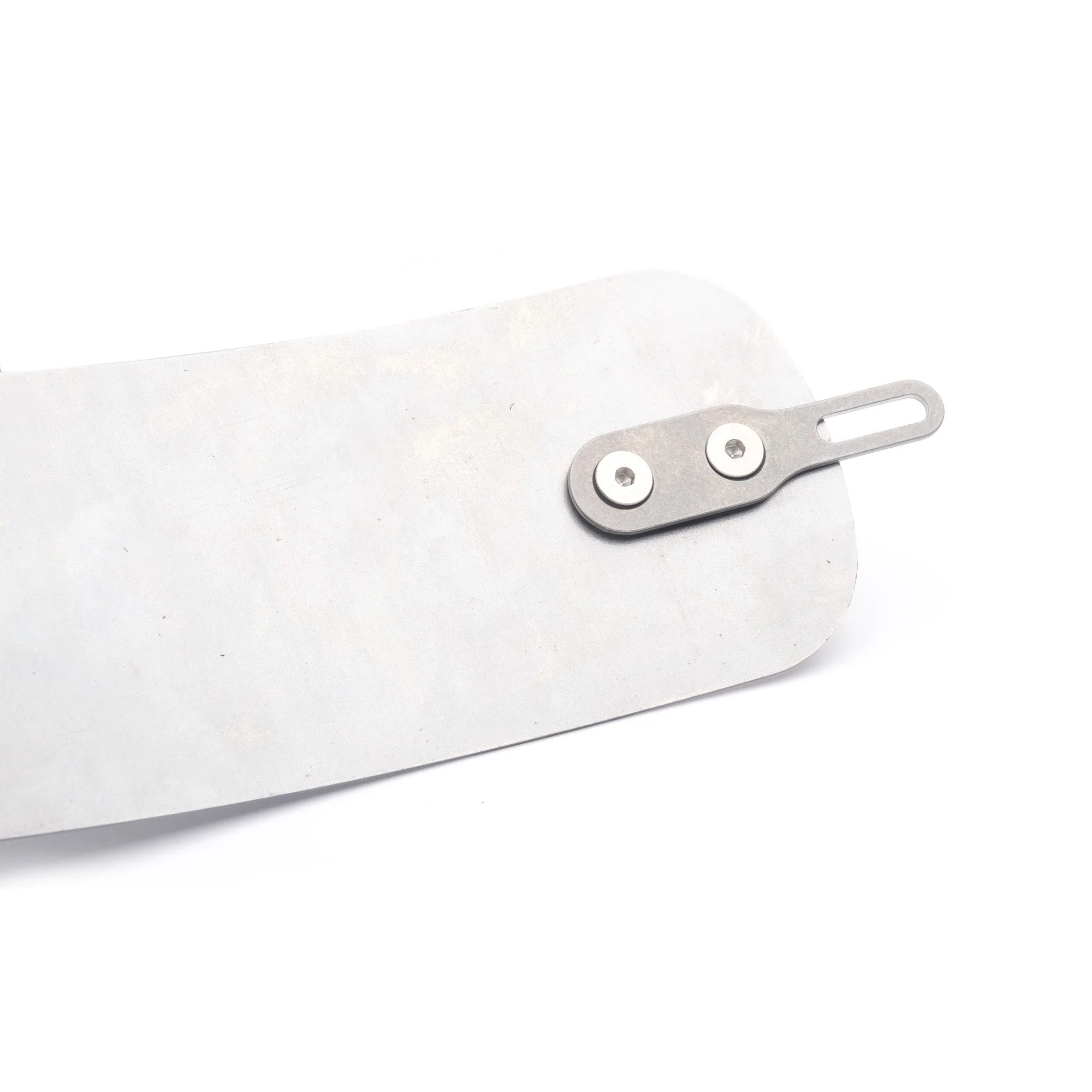

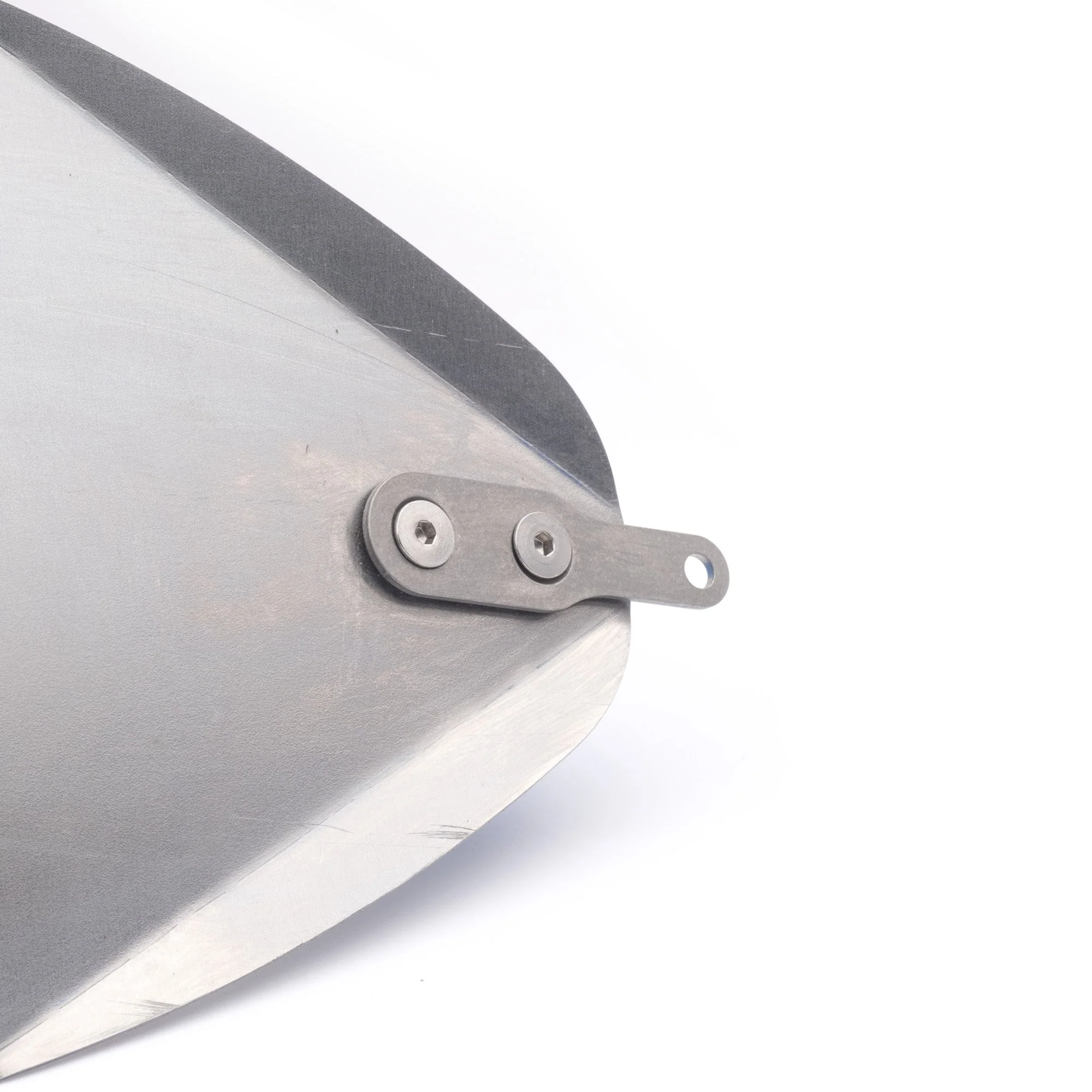

• Contains two stainless steel mounting brackets with hardware

Dimensions are as follows:

• 28" overall length
• 13" long driver seat section
• 8.5" wide driver seat section
• 15" radius section (measured from bend to back of the seat pan)
• 3.75" wide at passenger section

If you have any questions about fitment on your bike, we have put together scaled drawings. Safari users may need to right click to download.

Scaled Drawing | Chopper Seat Pan
