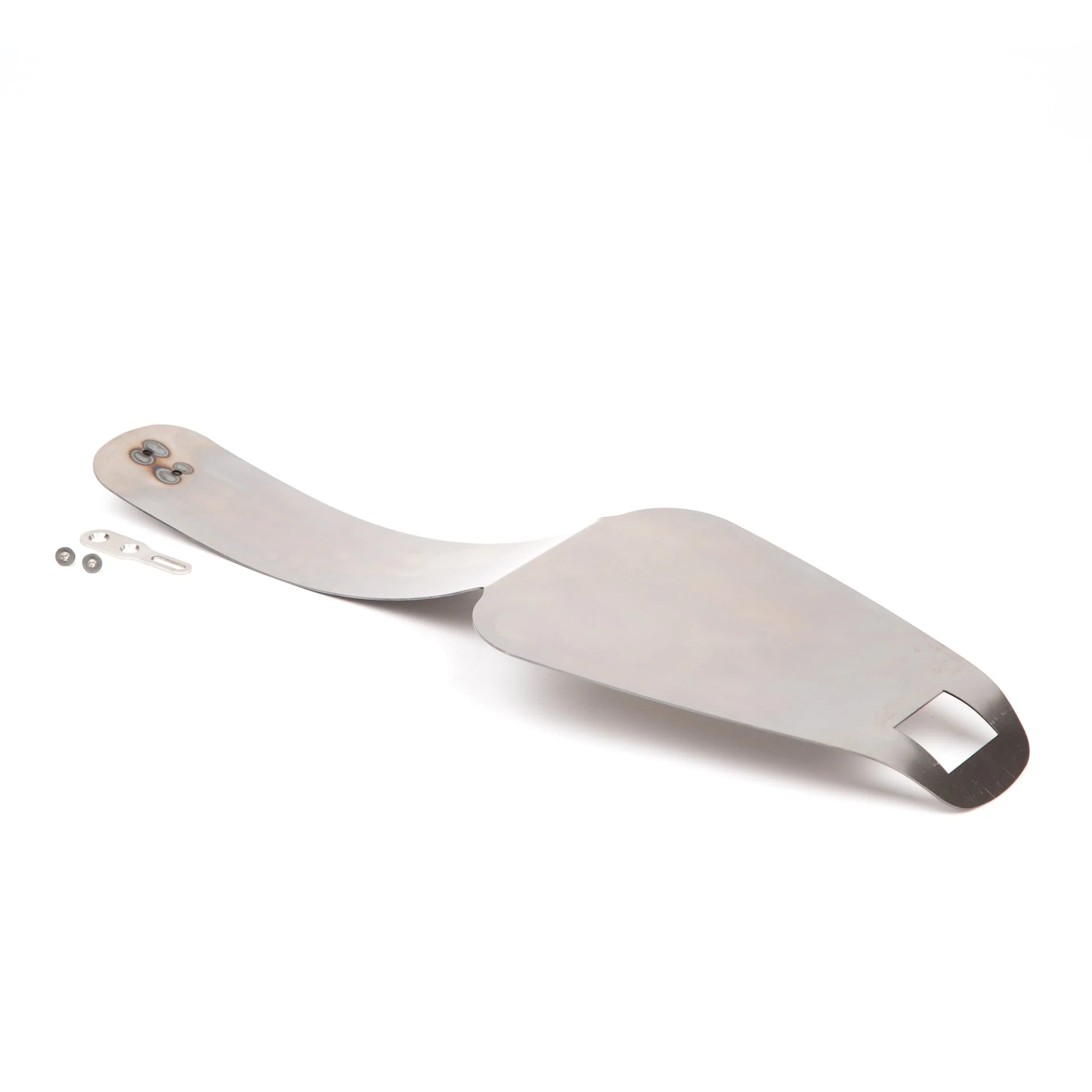

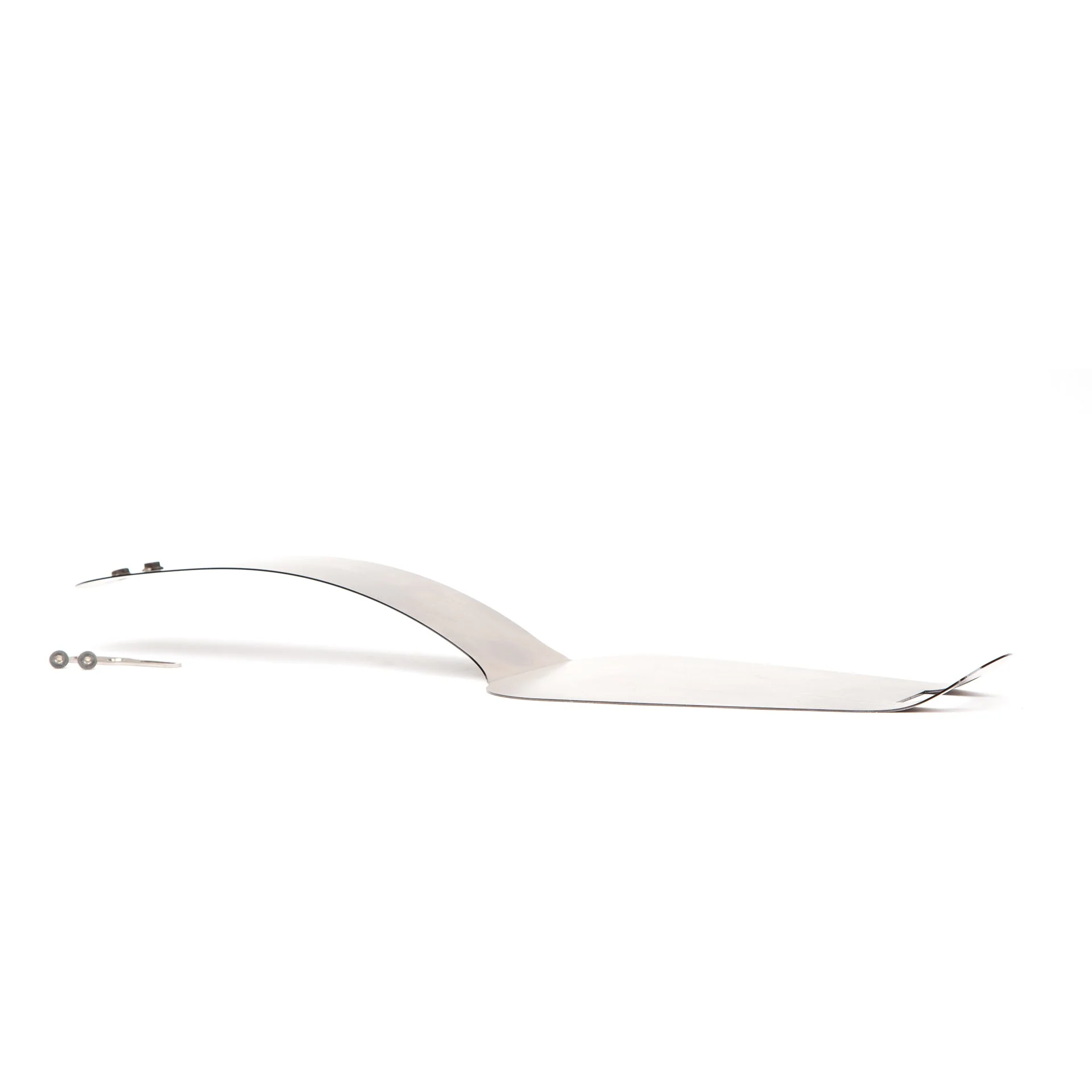

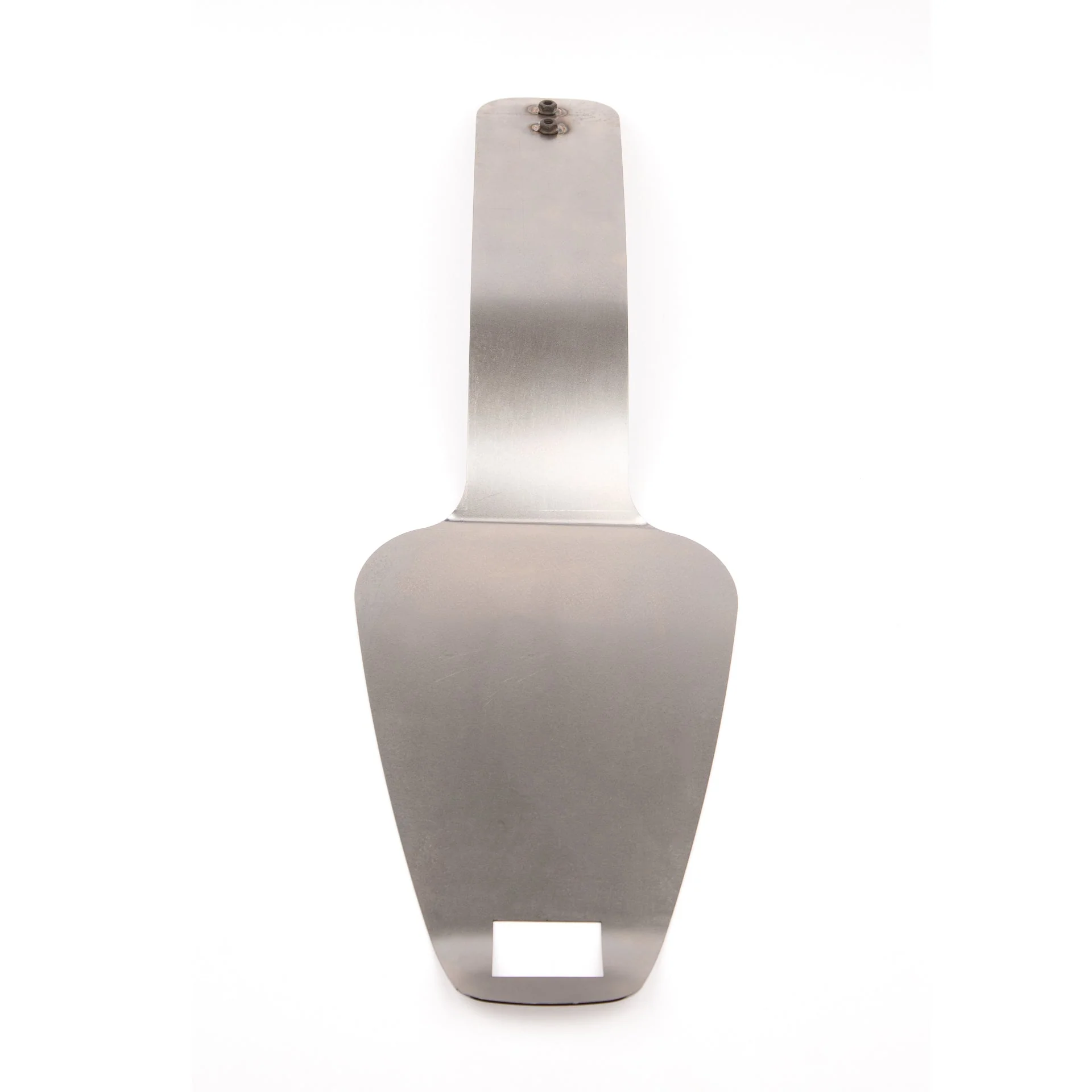

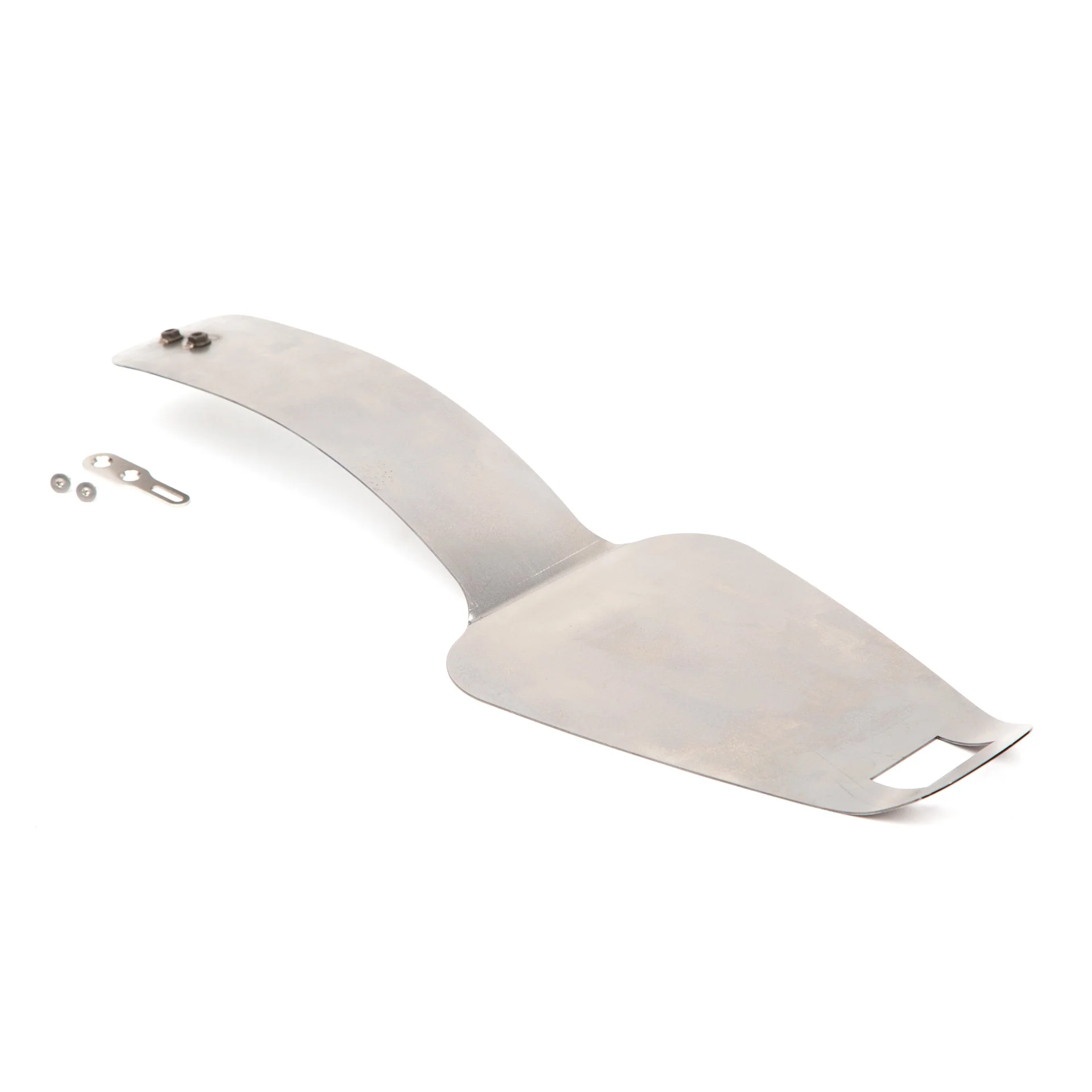

Sportster Cobra Seat Pan '82-'03

Interesting in making a custom seat for your sportster? Well here is the same seat pan we use for manufacturing all of our production Cobra and King Cobra seats. Use as-is or modify to fit your needs.

Seat Details:

• Made in USA
• Made of 16g mild steel

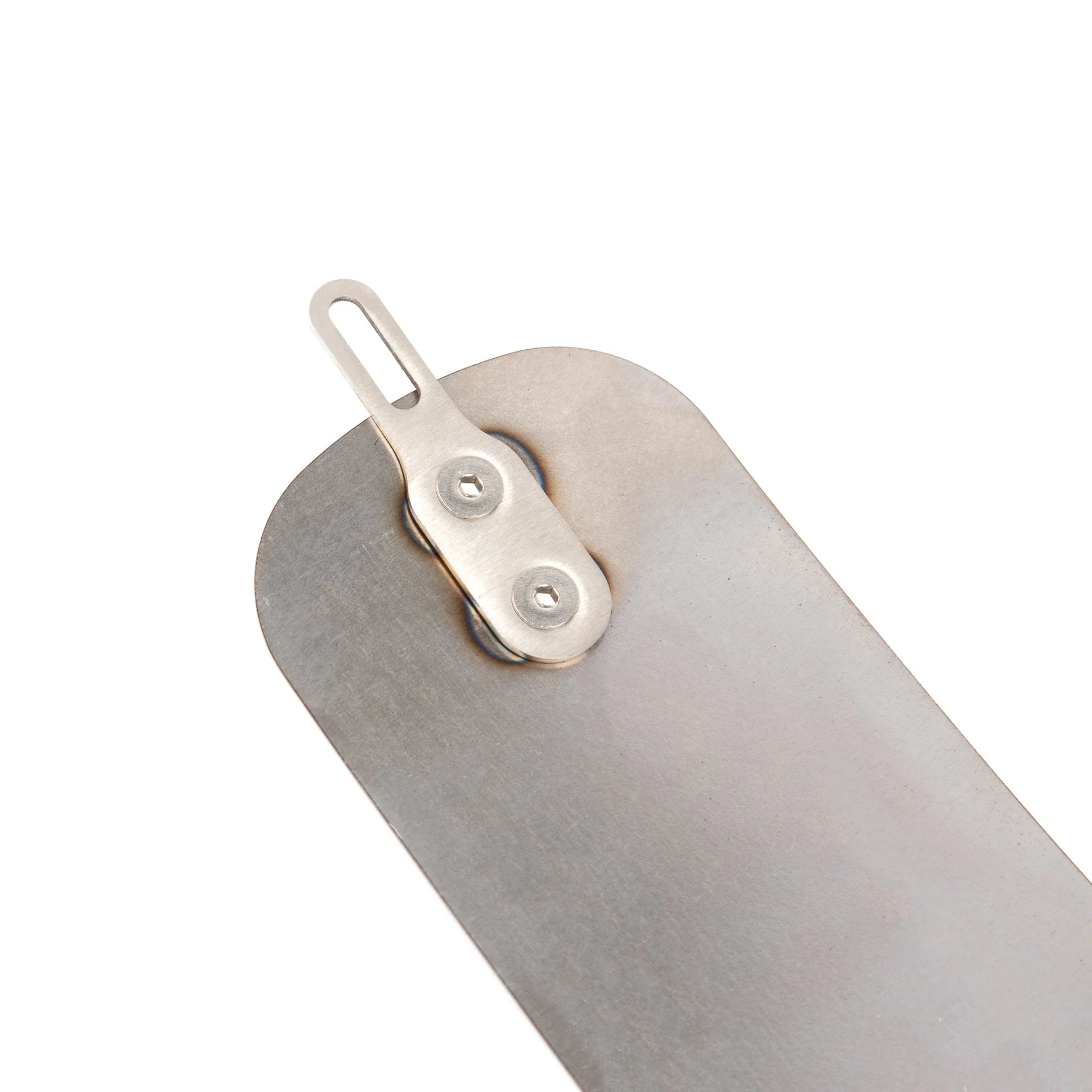

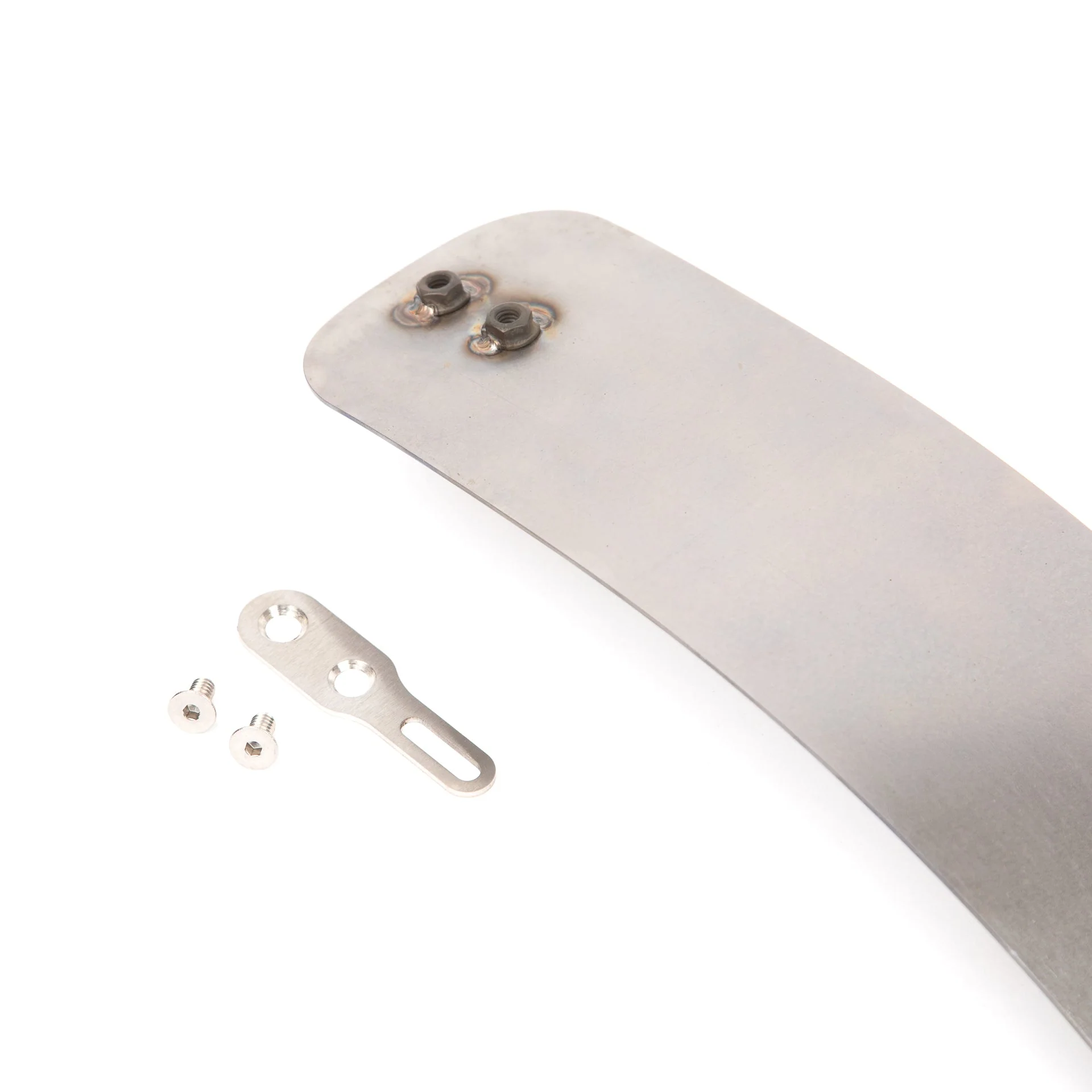

• Comes with stainless steel mounting bracket and hardware

Seat Dimensions:

• 25.5" overall length
• 12.25" long driver seat section
• 8.5" wide driver seat section
• 13.75" radius section (measured from bend to back of the seat pan)
• 3.75" wide at passenger section

Need a seat pan for your rigid frame? See our Chopper Seat Pan.

If you have any questions about fitment on your bike, we have put together scaled drawings. Safari users may need to right click to download.

Scaled Drawing | Sportster Cobra Seat Pan '82-'03
